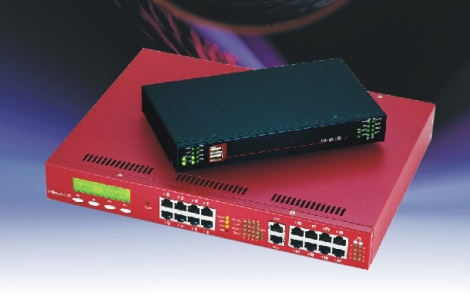

The
"mini" version of the MInt-132MAX
Detailed
Product Description:
Ip Pbx MInt-132MAX is an ideal
small office telephone exchange designed to keep
your business communications efficient and effective.
Based on embedded Linux OS, it integrates IP-sharing,
email/web server, and Internet firewall
together with digital switching technology in
modular PBX and VoIP design.
Leading edge IP-enabled PBX systems:
As broadband networking marches into the 21st
century with ever increasing popularity, it also
takes telecommunications to a new, higher level
where VoIP and distributed architecture are now
the next wave of revolution since the introduction
of auto attendant and voicemail. In this critical
times of transition, we proudly introduce the
MInt-132MAX series of IP-Enabled
PBX systems. Please note that the MInt-106MIX
is a scaled down version of the MInt-132MAX,
with a reduced function set.
Based on state-of-the-art embedded platforms with
proven Linux core technology, these systems provide
not only highly versatile and integrated telecom
solutions,
but also essential network services such as built-in
router, firewall, DHCP server,
Internet sharing, gatekeeper, VPN, and etc. Available
with such powerful functions at most reasonable
prices, these trendsetting devices will doubtlessly
bring new meanings to telecommunication for companies
of all sizes.
Features:
1) Analog and digital: best of both worlds
2) MInt-132MAX provides analog
switching for traditional (local) PBX operations,
with the following advantages over network based
switching:
a) Replaces old PBX systems without need for
new wirings
b) Uses inexpensive analog telephones instead
of expensive digital ones
c) Connects fax and other single line devices
with no additional hardware
d) Voice quality is better, more consistent,
and not subject to network conditions.
e) Operation is not interrupted in the event
of network breakdowns.
Comment:
MInt-132MAX provides digital,
IP-based switching for remote extensions and VoIP
calls:
a) Link multiple locations together via VoIP channels.
b) Remote extensions can be reached as easily
as the local ones.
c) Saves long distance charges by making on-net
and/or off-net calls.
d) Improved voice quality with QoS (Quality of
Service) support.
Distributed Architecture:
For companies with multiple locations, MInt-132MAX
systems can be linked together over the Internet
via built-in VoIP channels. This feature allows
remote extensions to be reached as easily as the
local ones, with huge savings in long distance
charges.
It is also possible to make trans-net calls to/from
PSTN numbers via remote
extensions, resulting in even more savings.
MInt-132MAX systems are designed
to work together seamlessly when multiple systems
are linked together under intranet environment.
Functions Overview:
a) Robust flash boot Linux system and application
programs
b) Full digital PBX functions with auto attendant,
voice mail, schedule call, SMS,
phone book, call log checking, status monitoring,
and record-on-demand
c) 8-port VoIP capability, with no A/D loss high
quality digital switching
d) Build in DHCP, e- mail server and fire wall
e) Smart system monitoring function ensures stability
and reports failures
f) QoS (Quality of Service) bandwidth control
capability ensures VoIP quality
Max.
no, of Analogue Ports: |
6 |
Max.
no. of CO Ports: |
2 |
No.
of Extension Ports: |
4 |
No.
of VoIP Ports: |
2
or 4 |
Interface
Connector: |
RJ-11 |
CPU: |
ARM920T
/ 200MHz |
System
Core: |
Linux
based, upgradable via web download |
USB
Ports: |
USB
1.1 |
Power
Consumption: |
12VDC,
24 Watts via AC/DC Adaptor |
Dimensions
(LxHxW): |
215mm
x 30mm x 132mm |
Temperature
Range: |
Storage:
-10°C - 70°C
Operating: 0°C - 50°C |
Network
Related Specifications:
Network
Interface: |
10/100
Base-T auto-negotiate |
LAN
Interface: |
10/100
Mbps RJ-45 LAN port (switch)
4 (w/IP Sharing) |
WAN
Interface: |
10/100
Mbps RJ-45 Ethernet |
Speech
Compression: |
G.723
/ G.729 |
VoIP
Standard: |
H.323,
SIP (Q4 2004) |
Silence
Supression: |
Supported
with CNG
(Comfort Noise Generation) |
Echo
Cancellation: |
G.165
/ G.168 25ms |
Adaptive
Jitter Buffer: |
YES |
Gain
Control: |
In/Out
+/- 6db |
Telecom
Functions & Network Capabilities:
-
Auto
Attendant
- Voicemail
- QoS
Server
- Dynamic
Domain Name Server
- Microsoft
Netmeeting Support
- NAT
(Network Address Translation)
- Firewall
- DHCP
Server
- VPN
Options:
- SmartPhone
Software
- EMail
server
- Web
Server / My SQL
- H.323
Gatekeeper
